PRT-PX8-DIN
The Protege DIN Rail 8 Output Expander provides the control of 8 high current Form C relay outputs to the Protege system, an advanced technology security product providing seamless and powerful integration of access, security and building automation. The Output Expander provides extensive hardware advancements that allow flexible and structured control of lighting and HVAC systems and is designed for use with industry standard DIN Rail mounting.
Special Features
- 8 Form C relays capable of switching resistive loads up to 7 Amps
- LED indicators to show the state of all onboard relays
- High performance 32 Bit processor
- Secure encrypted RS-485 module communications
- Online and remote upgradable firmware
- Ideal for connection in an electrical switch room to control signage, lighting and building automation
Technical Specifications
| DC Input Voltage | 11-14VDC |
| DC Output Voltage (DC IN Pass-Through) | 10.83-14.0VDC 0.7A (typical) electronic shutdown at 1.1A |
| Operating Current | 80mA (typical) |
| Total Combined Current* | 3.25A (max) |
| Low Voltage Cutout | 8.7VDC |
| Low Voltage Restore | 10.5VDC |
| RS-485 | Module Network |
| PGM Outputs | 8 Form C relays – 7A N.O./N.C. at 30 VAC/DC resistive/inductive |
| Dimensions (L x W x H) | 156.8 x 90 x 60mm (6.17 x 3.54 x 2.36″) |
| Weight | 156.8 x 90 x 60mm (6.17 x 3.54 x 2.36″) |
| Weight | 482g (17oz) |
| Operating Temperature | UL/ULC 0° to 49°C (32° to 120°F) : EU EN -10° to 55°C (14° to 131°F) |
| Storage Temperature | -10°- 85°C (14° – 185°F) |
| Humidity | 0%-93% non condensing, indoor use only (relative humidity) |
| Mean Time Between Failures (MTBF) | 587,177 hours (calculated using RFD 2000 (UTE C 80-810) Standard) |
Other Features
Power Supply
Device power is supplied from a 12VDC input. Ultra low current requirements ensure cost effective power distribution.
Connectivity and System Expansion
Expanding the Protege System with outputs from the Protege DIN Rail 8 Output Expander allows convenient cost effective expansion and added benefit of:
> 8 multiple function outputs for use in any programmable output entry
> Ideal for connection in an electrical switch room to control signage, lighting and building automation
> Address configuration is achieved using the address programming feature of the Protege System Controller
> Outputs can be configured to automatically turn on or resume their previous state when powered up or during a communication failure
Communication
Single RS-485 communication interface port used for all network communication functions and interconnects to other modules.
Upgradable Firmware
Utilizing the latest flash technology and high performance communication mediums, the firmware can be updated via the Protege interface.

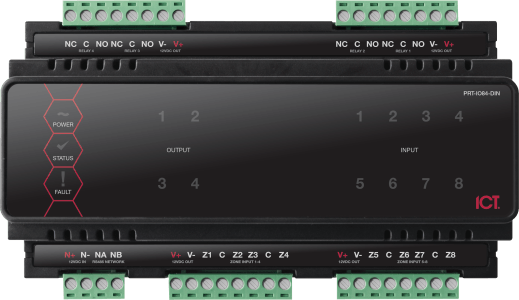

DIN Rail 8 Input 4 Output Expander
